Polyurethane Pipe Insulation Systems
Perfect Insulation
Recently, the importance of energy-saving solutions in building materials has increased considerably in order to create a safe and sustainable environment, due to the climate change and the uncontrolled increase in consumption. The insulation of pipes, one of the most commonly used materials in buildings and industrial structures, has a high impact on energy savings. Therefore, high-performance insulation materials should be preferred to ensure pipe insulation.
Polyurethane ensures high resistance to chemicals, condensation and corrosion, thereby ensuring long-lasting use of the pipe, shows high resistance to ultra high and low temperatures (-50°C to 135°C) and has excellent insulation properties thanks to its low thermal conductivity coefficient (λ). For these reasons, it is often preferred as pipe insulation material. Polyurethane helps maintain a warmer pipe temperature to avoid heat loss in pipes and prevent freezing or cracking in cold climates.
The thermal conductivity coefficient (lambda) value of polyurethane is lower than other insulation materials such as wood, rock wool and polystyrene, thanks to the high closed cell amount of rigid polyurethane foams. Therefore, the thermal insulation by rigid polyurethane foams is much higher than other insulation materials.
KIMrigid®Pipe Insulation Systems comply with the TS EN 253 Standard and offers solutions in various densities with high insulation properties in pipe insulation.
Areas of usage:
- Oil and Gas Pipelines
- Regional Water Pipes
- Industrial Tanks
Advantages
- Energy efficiency
- High heat resistance
- High mechanical resistance
- Short demoulding time with fast curing properties
- Good adhesion to many surfaces
- High production efficiency
- Can be used in high pressure and low pressure machines
- Providing solutions with different densities

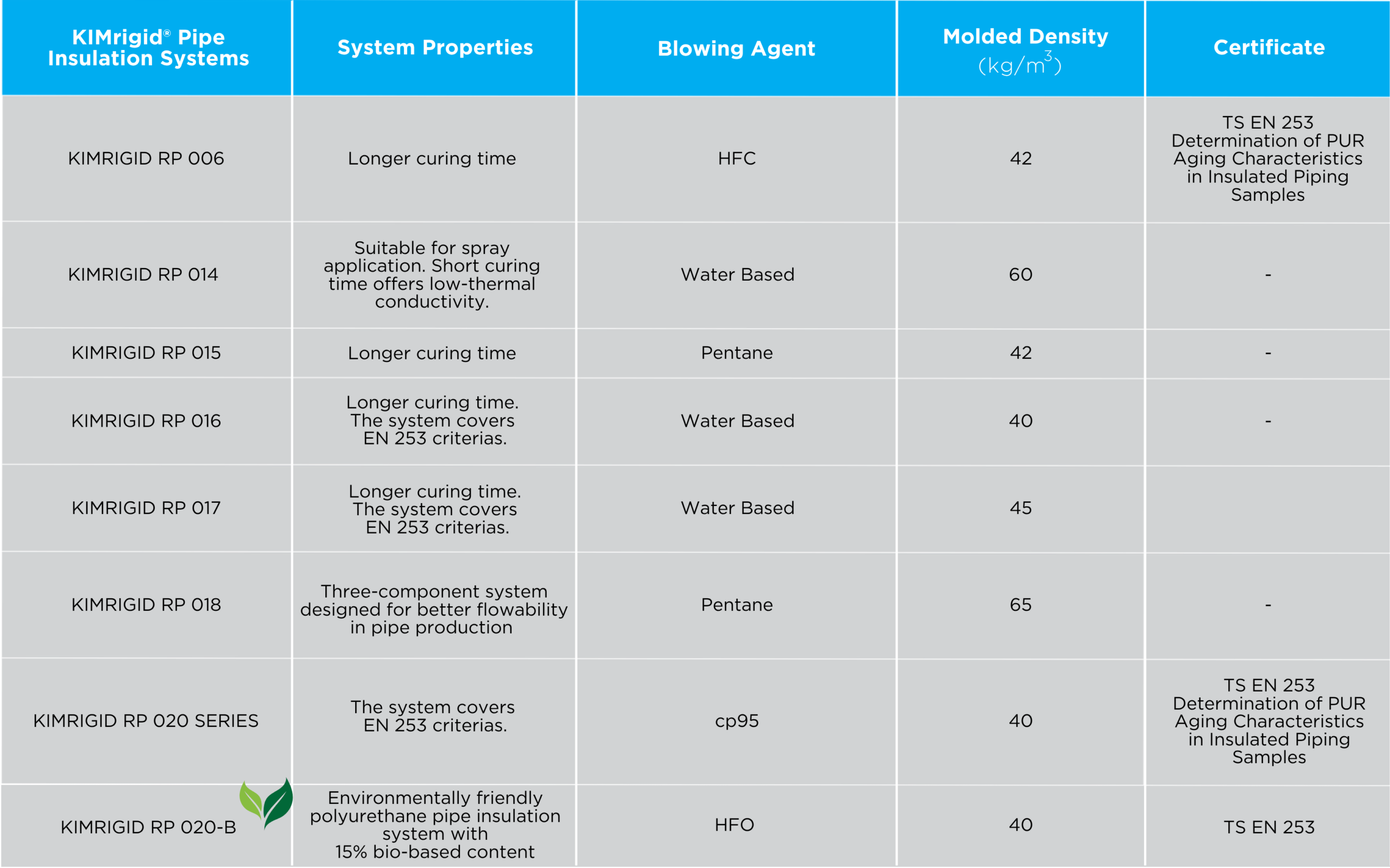

KIMrigid® Pipe Insulation Systems
| KIMrigid® pipe insulation systems | System properties | Blowing agent | Molded density (kg/m³) | Certificate |
|---|---|---|---|---|
| KIMrigid RP 006 | Longer curing time | HFC | 42 | TS EN 253 Determination of PUR aging characteristics in insulated piping samples |
| KIMrigid RP 014 | Suitable for spray application. Short curing time, offers low thermal conductivity. | Water based | 60 | – |
| KIMrigid RP 015 | Longer curing time | Pentane | 42 | – |
| KIMrigid RP 016 | Longer curing time. The system meets the EN 253 criteria. | Water based | 40 | – |
| KIMrigid RP 017 | Longer curing time. The system meets the EN 253 criteria. | Water based | 45 | – |
| KIMrigid RP 018 | Three-component system designed for better flowability in pipe production. | Pentane | 65 | – |
| KIMrigid RP 020 SERIES | The system meets the EN 253 criteria. | cp95 | 40 | TS EN 253 Determination of PUR aging characteristics in insulated piping samples |
| KIMrigid RP 020-B | Environmentally friendly polyurethane pipe insulation system with 15% bio-based content | HFO | 40 | TS EN 253 |
For more detailed information about our systems, you can review our brochure.
| # | Brochure | Download |
|---|---|---|
| 1 | KIMrigid® Pipe Insulation Systems | Download |
