Polyurethane Raw Materials for Sandwich Panel Production

Name: Polyurethane Raw Materials for Sandwich Panel Production
Brand: KIMrigid

Safe and Sustainable Structures

With ever increasing energy consumption in the world, current energy sources should be used in the most effective and productive ways to meet such demand.Energy efficiency has become an indispensable part of sustainable development since it directly affects our future and the environment. Energy savings also means long term cost saving for the consumer.

In studies on energy efficiency, the share of buildings in energy consumption have been determined as very significant and sandwich panels that provide high thermal insulation have started widespread use creating critical impact on energy efficiency.

Sandwich panels used in the construction sector provide buildings with thermal insulation as well as protection against external factors and supply a solid, firm barrier. They are composed of composite, high resistance, low density foam filling material. While the inner and outer metal sheets provide protection from external factors and prevent corrosion, the foam filling material ensures thermal insulation.

The core material used in the sandwich panel has significant importance regarding energy saving with thermal insulation. Polyurethane foam provides high insulation performance for the buildings with its low conductivity coefficient. Furthermore, it provides the opportunity to achieve more living space in the buildings through allowing the manufacture of thinner panels. Due to these superior features, polyurethane has become the ideal and indispensable filling material used in sandwich panel manufacture.

Kimpur developed KIMrigid^® sandwich panel systems for the production of polyurethane foam that ensures safe and sustainable structures with very high fire resistance and excellent thermal insulation properties.

Our systems are divided into two groups as continuous (PIR and PUR) and discontinuous sandwich panel systems. Continuous systems can be composed of 2, 4 or 5-components depending on the production line ; while discontinuous systems offer solutions with different reaction times depending on the machine flow rate and demolding time. The systems are formulated in different fire resistance levels according to requirements.

Areas Of Usage

Pitched Roofs
Flat Roofs
Facades
Insulation boards
Cold storage room panels
Refrigerated Containers

Advantages

High fire resistance and dimensional stability
Superior mechanical and thermal features
Excellent insulation with low thermal conductivity coefficient l:21mW/mK )
High productivity with excellent curing feature
Minimum scrap with excellent processability
Good adhesion on appropriate process conditions
Extending the life of the building with its light feature
Use of 100% pure raw materials
Systems designed for different flammability classes (PIR, B2, B3)

Continuous Sandwich Panel Polyurethane Systems

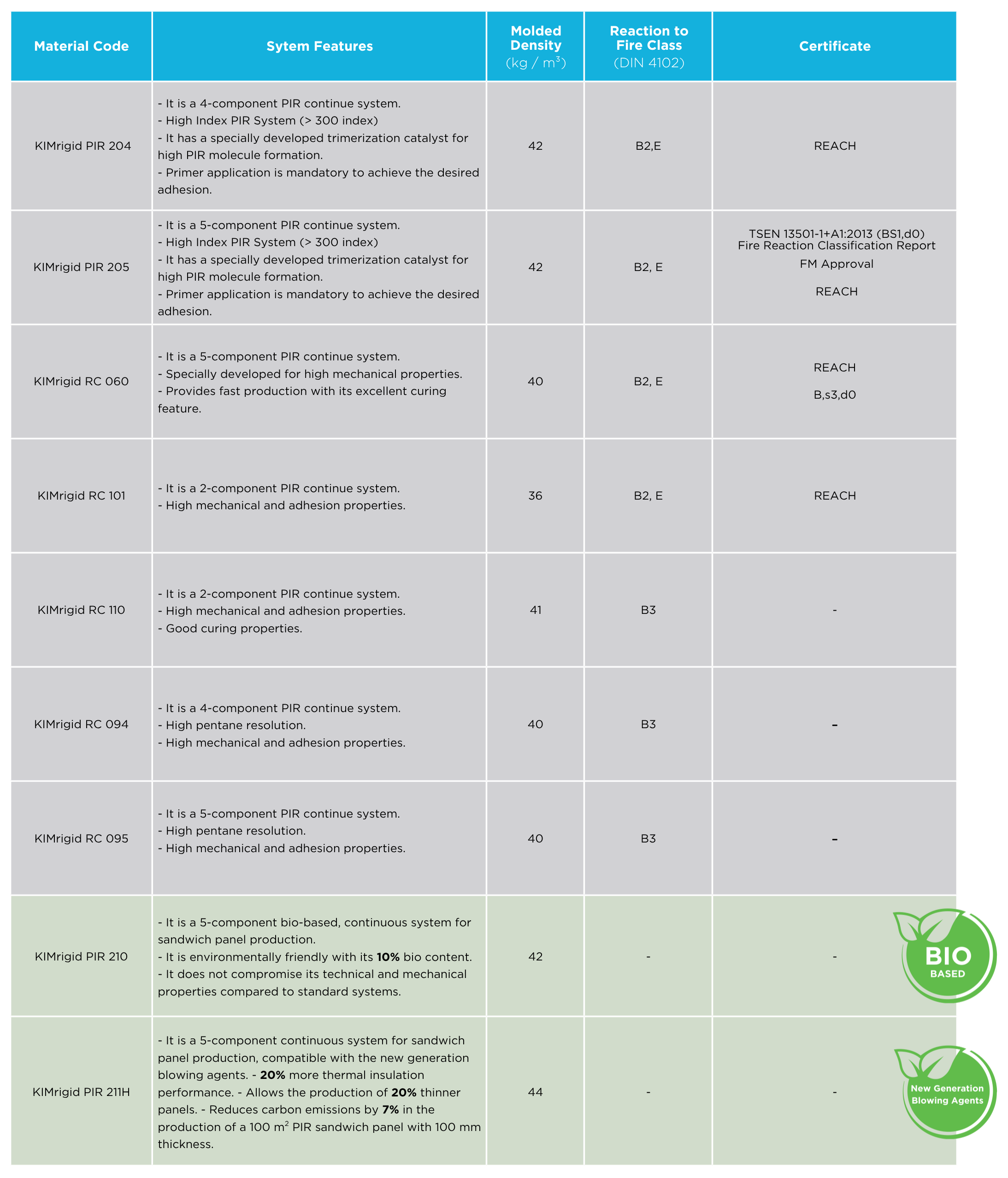

Technical data of KIMrigid® PIR/PUR sandwich panel systemsFor continuous production lines
Material code	System features	Molded density (kg/m³)	Reaction to fire class (DIN 4102)	Certificate
KIMrigid PIR 204	It is a 4-component PIR continuous system. High-index PIR system (> 300 index) It has a specially developed trimerization catalyst for high PIR molecule formation. Primer application is mandatory to achieve the desired adhesion.	42	B2, E	REACH
KIMrigid PIR 205	It is a 5-component PIR continuous system. High-index PIR system (> 300 index) It has a specially developed trimerization catalyst for high PIR molecule formation. Primer application is mandatory to achieve the desired adhesion.	42	B2, E	TS EN 13501-1+A1:2013 (BS1,d0) Fire reaction classification report FM Approval REACH
KIMrigid RC 060	It is a 5-component PIR continuous system. Specially developed for high mechanical properties. Provides fast production with its excellent curing feature.	40	B2, E	REACH B,s3,d0
KIMrigid RC 101	It is a 2-component PIR continuous system. High mechanical and adhesion properties.	36	B2, E	REACH
KIMrigid RC 110	It is a 2-component PIR continuous system. High mechanical and adhesion properties. Good curing properties.	41	B3	–
KIMrigid RC 094	It is a 4-component PIR continuous system. High pentane solubility. High mechanical and adhesion properties.	40	B3	–
KIMrigid RC 095	It is a 5-component PIR continuous system. High pentane solubility. High mechanical and adhesion properties.	40	B3	–
KIMrigid PIR 210 BIO-BASED	It is a 5-component bio-based, continuous system for sandwich panel production. It is environmentally friendly with its 10% bio content. It does not compromise its technical and mechanical properties compared to standard systems.	42	–	–
KIMrigid PIR 211H NEW-GENERATION BLOWING AGENTS	It is a 5-component continuous system for sandwich panel production, compatible with the new generation blowing agents. 20% more thermal insulation performance. Allows the production of 20% thinner panels. Reduces carbon emissions by 7% in the production of a 100 m² PIR sandwich panel with 100 mm thickness.	44	–	–

Discontinuous Sandwich Panel Polyurethane Systems

Technical data of KIMrigid® RD sandwich panel systemsFor discontinuous production lines
Material code	Blowing agent	Applied density (kg/m³)	Reaction to fire	Certificate
KIMrigid RD 068	HFC	42	B3	–
KIMrigid RD 073	FA – HFC	42	–	–
KIMrigid RD 075	n-pentane	42	B3	–
KIMrigid RD 077	n-pentane	42	B2	TS EN 13501-1:2018 (CS3,d0) Fire reaction classification report
KIMrigid RD 090	FA – HFC	44	B1	TS EN 13501-1:2018 (CS3,d0) Fire reaction classification report
KIMrigid RD 078	n-pentane	44	B1	TS EN 13501-1:2018 (CS3,d0) Fire reaction classification report
KIMrigid RD 100 BIO-BASED	n-pentane	42	B3	–

KIMrigid^® MW/EPS Sanwich Panel Adhesive Systems

The inner bonding and outer metal sheets of the sandwich panel with the inner filling is very important for the performance of the panel. It is important for both the inner layer and outer layer to be strong. For this reason, a material with strong adhesion features should be preferred when selecting the right production for sandwich panels.

In order to extend the life of the structure and to obtain more living space, it is expected that the adhesive part in panel production should be thin, light in structure and it must obtain abrasion resistance for long-lasting use.

In addition to being used as a filling material in sandwich panel production with its high advantages, polyurethane is frequently preferred as an adhesive material with its very good adhesion to the surface, high abrasion resistance and lightness properties.

For the production of sandwich panels, Kimpur has developed the durable KIMrigid MW/EPS Sandwich Panel Adhesive Systems, specially designed for the demands of our customers, with excellent adhesion properties to surfaces.

ADVANTAGES:

-Excellent adhesion to metal sheet surfaces

-Compatible with EPS and rock wool

-Production at high line speed with fast adhesion

-High abrasion resistance

-Pure raw materials

Sandwich Panel Adhesive Systems

KIMrigid® mineral wool / EPS panel adhesive systems
Material code	Application method	Free rise density (kg/m³)	Advantages
KIMrigid RCG 004	Spray or disc	115	Two-component polyurethane glue system. Designed to produce metal-faced panels with mineral wool or EPS as a core material.
KIMrigid RCG 009	Whipping	50	Two-component polyurethane glue system. Designed to produce metal-faced panels with mineral wool or EPS as a core material.
KIMrigid RCG 010	Whipping	42	Two-component polyurethane glue system. Designed to produce metal-faced panels with mineral wool or EPS as a core material.
KIMrigid RCG 012	Oscillating poker	43	Two-component polyurethane glue system. Designed to produce metal-faced panels with mineral wool or EPS as a core material.
